Honeywell Hard Hat Mounted Voltage Detector - HHVSB11
Honeywell Hard Hat Mounted Voltage Detector - HHVSB11
Inclusive of 15% VAT

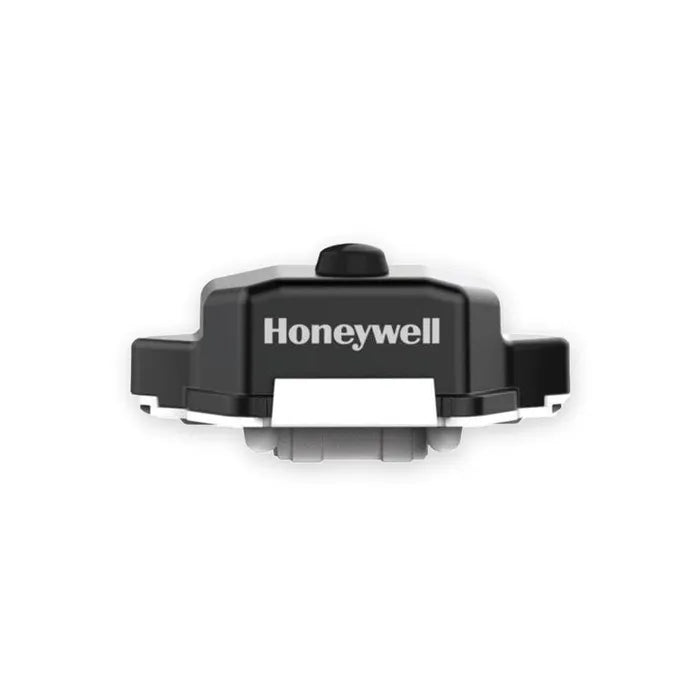

The Honeywell Hard Hat Mounted Voltage Detector is a compact, lightweight device designed to provide hands-free warning of nearby AC high-voltage sources. It mounts directly to a hard hat and uses audible and visual alerts when high voltage is detected. The detector is designed to detect voltage from 1.1 kV to 11 kV, with a typical warning distance of approximately 6.5 feet from an 11 kV AC line. Its IP65-rated housing provides protection against dust and water, making it suitable for professionals working around high-voltage electrical equipment and installations.
◈ Hard hat-mounted voltage detector
◈ Non-contact AC voltage detection
◈ Detects voltage from 1.1 kV to 11 kV
◈ Audible buzzer and visual LED warning
◈ Typical warning distance of approximately 6.5 ft from an 11 kV AC line
◈ Compact and lightweight design
◈ IP65-rated protection
◈ Battery powered for hands-free operation
Technical Specifications
What’s in the Box
- Hard Hat Mounted Voltage Detector 1
Delivery Information
Everything you need to know about dispatch, coverage and B2B ordering before you check out.
Dispatch & transit
Delivery takes 1–2 business days within Dammam and 2–4 business days for all other regions across Saudi Arabia.
Free over 1000 SRCoverage
All 13 regions incl. Riyadh, Jeddah, Dammam, Makkah, Madinah, NEOM & Qiddiya project sites.
Site delivery availableB2B terms
VAT invoice issued on every order. Purchase-order & pay-on-invoice available for approved accounts.
PO accepted
You may also like
Frequently Asked Questions
Answers to common questions about this Product.
It is a compact, hard hat-mounted device designed to detect and alert the wearer to nearby AC high-voltage sources.
It uses non-contact sensing to detect an AC electrical field and provides audible and visual warnings when voltage is detected.
It is designed to detect voltage from 1.1 kV to 11 kV, including intermediate levels such as 3 kV, 5 kV, 7 kV and 9 kV.
The detector is designed to detect AC voltage.
It operates at 50 Hz and 60 Hz.
For an 11 kV AC line, the typical warning distance is approximately 6.5 feet or 1.98 metres.
It provides an audible buzzer alarm and a visual red LED indication.
It has an IP65 ingress-protection rating according to IEC 60529.
It uses two 1.5V AAA batteries, providing a total battery voltage of 3V.
The specified operating temperature range is 0°C to 55°C.
The specified colour is white and black.
Yes. It stays attached to the hard hat, allowing the user's hands to remain free while working.
The SKU is HHVSB11.
